![](https://assets-cdn.interactcp.com/interactrv/images/unit_photo_20160708063307440199371.JPG.pagespeed.ce.KVMOg8NK_j.jpg)
-
Sleeps 2
-
1 Slides
-
Outdoor KitchenRear Kitchen
-
30ft Long
-
7,876 lbs

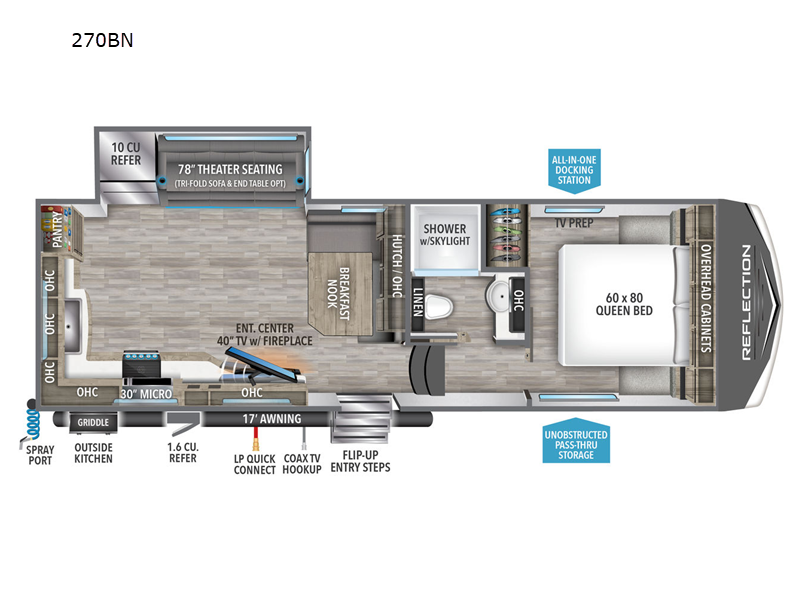

270BN Floorplan
Specifications
Sleeps | 2 | Slides | 1 |
Length | 29 ft 11 in | Ext Width | 8 ft |
Ext Height | 12 ft | Hitch Weight | 1166 lbs |
GVWR | 9995 lbs | Dry Weight | 7876 lbs |
Fresh Water Capacity | 56 gals | Grey Water Capacity | 78 gals |
Black Water Capacity | 39 gals | Tire Size | ST225/75R15LRE |
Furnace BTU | 30000 btu | Available Beds | Queen |
Refrigerator Size | 10 cu ft | Shower Size | 30" x 36" |
LP Tank Capacity | 30 lbs. | Water Heater Type | On Demand |
AC BTU | 15000 btu | TV Info | LR 40" LED TV |
Awning Info | 17' One Touch Electric w/LED Lights | Axle Count | 2 |
Number of LP Tanks | 2 | Shower Type | Walk-In Shower |
Electrical Service | 50 amp |
Description
2023 Grand Design Reflection fifth wheel 270BN highlights:
- Outside Griddle
- Walk-In Shower
- Breakfast Nook
- Outdoor Spray Port
- 78" Theater Seating
Your short bed truck will love this fifth wheel with swivel pin box and a 90 degree turning radius without a slider hitch. You will love this fifth wheel featuring a single slide for added interior living space and all the comforts and conveniences it provides you while you travel. The slide features a 78" theater seat plus there is a breakfast nook for more seating. Both can easily view the entertainment center with 40" TV. A rear kitchen indoors provides everything you need to create meals like home while on the road, and if you want to spend as much time outside as possible, then the outdoor griddle will certainly accommodate you for meals. Up front, a cozy private bedroom with queen bed, wardrobe, and overhead cabinets. Right next door, you will find a large walk-in shower with skylight for more natural lighting, as well as a toilet, and a vanity with sink and linen cabinet for your towels and toiletries. This unit offers ample storage both inside and out. You will love the full unobstructed pass-through compartment for all of your gear, plus so much more!
With any Reflection 150 Series fifth wheel by Grand Design, there is more available payload capacity and a broader range of half-ton trucks capable of towing this fifth wheel, and no slider hitch is needed thanks to the 90-degree turning radius which makes them short bed friendly and easier to tow. The mandatory Ultimate Power package provides a "One-Touch" automatic leveling system and a detachable power cord with LED light for easy setup, plus motion sensor pass-through lighting and entry lighting, and the Tire Linc TPMS will help you stay safe on the road. The interior offers residential luxury from the cabinetry and premium congoleum flooring, plus the booth dinette to the residential-style window treatment. Make your refined decision today!
Features
Standard Features (2023)
***PLEASE NOTE: Features and Options separated by type below:
---------------------------------------------------
TRAVEL TRAILERS
Exterior
- 80% Tint Radius Safety Glass Windows
- Battery Kill Switch in Pass Thru Storage Area
- 30# LP Bottles (2) with cover
- 30" Radius Entry Door
- Outside Shower
- Factory Installed Roof Ladder
- Marine Grade LED Hitch Light
Construction
- Gel Coat Exterior Sidewalls
- Residential 5" Truss Rafters (16" O.C.)
- Walk On Roof Decking
- Fiberglass and Radiant Foil Roof and Front Cap Insulation
- One-Piece TPO Roof Membrane with 18 Year Warranty
- Easy Access Low Point Drain Valves
- Laminated Aluminum Framed Side Walls (R-9)
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
- Aluminum Framed Main Floor (R-30*)
- Residential Wood Framed Roof (R-40*)
- Laminated Aluminum Framed Rear Wall (R-9)
- Aerodynamic Front Cap w/ Max Turn Radius and Integrated LED Lights
- Heated & Enclosed Dump Valves
- Heated & Enclosed Underbelly w/ Circulating Heat
- Thermofoil Insulation Under Holding Tanks
- EZ Winterization Valve in Utility Center
- Insulated Slide out Floors
Interior
- Residential Panel Cabinet Doors
- Solid Hardwood Drawer Fronts
- Solid Core Cabinet Stiles
- Pre-drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Large Panoramic Slide Room Windows
- Premium Congoleum Flooring
- Ductless Flooring Throughout Living Area
- Residential Style Window Treatment
- LED Lighting Throughout with Motion Sensors (Key Areas)
- Residential Matte Black Cabinet Hardware
- Hardwood Galley Slide Trim Moldings
- Tri-Fold Hide-A-Bed Sofa (Model Specific)
- Blackout Roller Shades
Kitchen
- Deep Seated Stainless Steel Sink
- Modern Glass Refrigerator Door Fronts
Bedroom
- Functional Wardrobe Closet
- 60 x 80 Mattress with Residential Bedspread
- Oversized Bed Base Storage
- Bedroom Heat Registers
Bathroom
- Spacious Shower with Glass Door
- Wide View Skylight Over Shower
- Power Vent Fan
- Large Vanity Top w/ Deep Sink
- Large Medicine Cabinet with Mirror
Packages
Peace of Mind Package
- Residential Cabinetry
- Universal All-In-One Docking Station
- Metal Slam Latch Front Cargo Doors
- On Demand Tankless Water Heater
- Porcelain Toilet with Foot Flush
- High-Rise Faucet with Pullout Sprayer
- Aluminum Entry Steps
- Wall Hugger Theatre Seats
- Painted Fiberglass Front Cap
- Residential Booth Dinette
- LP Quick Connect
- Anti-Lock Breaking System
- Roller Shades
- 6' Coiled Break Away Cable
- Deep Seated Stainless Steel Kitchen Sink
- Walk-on Roof
- Aluminum Rims
- Spare Tire & Carrier
- Nitrogen Filled Radial Tires
- 2” Receiver Hitch Upgrade
- Solid Surface Countertops
- Solid Surface Sink Covers
Ultimate Power Package
- 30" Stainless Steel Microwave
- 15K BTU Ducted A/C
- "One-Touch" Electric LED Awning
- Maxx Air Fan
- AM/FM/CD/DVD HDMI Bluetooth Stereo
- 50 AMP Service, Wired and Framed for 2nd A/C
- High Definition LED Television
- Detachable Power Cord with LED Light
- Power Front and Rear Stabilizer Jacks
- LED Interior Lighting
- Motion Sensor Pass Through Lighting (LED)
- Compass Connect
- Tire Linc TPMS
Arctic 4-Seasons Protection Package
- 35k BTU High Capacity Furnace
- Double Insulated Roof and Front Cap
- Heated and Enclosed Dump Valves
- Heated and Enclosed Underbelly w/Circulating Heat
- Thermofoil Insulation under Holding Tanks
- EZ Winterization Valve in Utility Center
- Insulated Slide-out Floors
- Dual Attic Vents
- 12V Heat Pads on Holding Tanks
Solar Package
- 180W/370W Roof Mounted Solar Panel
- Roof Mounted Quick Connect Plugs
- 50 Amp Charge Controller
- 12V 10 or 16 Cu. Ft. Refrigerator (Floorplan Specific)
- Inverter Prep
--------------------------------------------------
FIFTH WHEELS
Exterior
- 80% Tint Radius Safety Glass Windows
- Extended Pin Box
- 30# LP Bottles (2)
- 30" Radius Entry Door
- Outside Shower
- Factory Installed Roof Ladder
- "Axis" Entry Steps
- LP Quick Connect
- 6' Coiled Break Away Cable
- Unobstructed Pass Thru Storage
- "One Touch" Electric LED Awning
Construction
- Aerodynamic Front Cap with Max Turn Radius
- High-Gloss Gel Coat Exterior Sidewalls
- Residential 5" Truss Rafters (16" O.C.)
- Walk On Roof Decking
- Fiberglass and Radiant Foil Roof and Front Cap Insulation
- One-Piece TPO Roof Membrane with 18-Year Warranty
- Laminated Aluminum Framed Rear Wall (R-9)
- Laminated Aluminum Framed Side Walls (R-9)
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
- Aluminum Framed Main Floor (R-30*)
- Residential Wood Framed Roof (R-40*)
- Metal Slam Latch Front Cargo Doors
- Painted Fiberglass Front Cap
- 2" Receiver Hitch Upgrade
Running Gear
- Rubberized Suspension Equalizer
- Aluminum Wheels with Goodyear Endurance Tires
- Aluminum Rims
- Spare Tire and Carrier
- Anti-Lock Brake System
- Nitrogen Filled Radial Tires
Frame & Chassis
- 90 Degree Turning Point Pin Box
Interior
- Residential Cabinet Doors
- Solid Hardwood Drawer Fronts
- Louvered Tread Steps to Bedroom
- Solid Core Cabinet Stiles
- Pre-drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Tri-Fold Hide-A-Bed Sofa (Model Specific)
- Large Panoramic Slide Room Windows'
- Premium Congoleum Flooring
- Ductless Flooring Throughout Living Area
- Residential Style Window Treatment
- Blackout Roller Shade Window Covering
- Wall Hugger Theatre Seats
- Residential Booth Dinette
- Solid Surface Countertops & Sink Covers
Kitchen
- Hardwood Galley Slide Trim Molding
- Deep Seated Stainless Steel Sink
- Modern Glass Refrigerator Door Fronts
- High-Rise Faucet w/ Pullout Sprayer
Electrical
- Marine Grade LED Hitch Light
- LED "Night Lights" Under Bedroom Slide
- Battery Kill Switch in Pass Thru Storage Area
- LED Lighting with Motion Sensors (Key Areas)
- Universal All-In-One Docking Station
- 370W Roof Mounted Solar Panel
- Roof Mounted Quick Connect Plugs
- 50 Amp Charge Controller
- Inverter Prep
HVAC
- Heat Duct and A/C Vents in Bathroom
- Power Vent Fan
- Bedroom Heat Registers
- Adjustable A/C Vents
- 15k Ducted Main A/C
Plumbing
- High-Capacity Water Pump w/ Interior & Exterior Switch
- Extra Large 2" Fresh Water Drain Valve
- Easy Access Low Point Drain Valves
- On-Demand Tankless Water Heater
Bedroom
- Functional Wardrobe Closet
- 60 x 80 Mattress with Residential Bedspread
- Oversized Bed Base Storage
- Residential Bedspread
Bathroom
- Spacious Shower with Glass Door
- Wide View Skylight Over Shower
- Large Vanity Top w/ Deep Sink
- Large Medicine Cabinet with Mirror
- Porcelain Toilet with Foot Flush
Appliance
- 12V 16 Cu. Ft. Refrigerator
- 30'' Stainless Steel Microwave
Electronics
- Outside Speakers
- Cable/SAT Prep
Packages
Peace of Mind Package
- Residential Cabinetry
- Universal All-In-One Docking Station
- Metal Slam Latch Front Cargo Doors
- On Demand Tankless Water Heater
- Porcelain Toilet with Foot Pedal Flush
- High-Rise Faucet with Pullout Sprayer
- "Axis" Entry Steps
- Wall Hugger Theatre Seats
- Painted Fiberglass Front Cap
- Residential Booth Dinette
- LP Quick Connect
- Anti-Lock Brakes
- Roller Shades
- 6' Coiled Break Away Cable
- Deep Seated Stainless Steel Kitchen Sink
- Walk-on Roof
- Aluminum Rims
- Spare Tire & Carrier
- Nitrogen Filled Radial Tires
- 2" Receiver Hitch
- Solid Surface Countertops
- Solid Surface Sink Covers
Ultimate Power Package
- 30" Stainless Steel Microwave
- 15K Ducted Main A/C
- "One-Touch" Electric LED Awning
- Maxx Air Fan
- AM/FM/CD/DVD HDMI Bluetooth Stereo
- 50 AMP Service, Wired and Framed for 2nd A/C
- High Definition LED TV
- Detachable Power Cord with LED Light
- "One-Touch" Automatic Leveling System
- LED Interior Lighting
- Motion Sensor Pass Through Lighting (LED)
- Motion Sensor Entry Lighting (LED)
- Compass Connect
- Tire Linc TPMS
Arctic 4-Seasons Protection Package
- 35k BTU High Capacity Furnace
- Double Insulated Roof and Front Cap
- Heated and Enclosed Dump Valves
- Heated and Enclosed Underbelly w/Circulating Heat
- Thermofoil Insulation under Holding Tanks
- EZ Winterization Valve in Utility Center
- Insulated Slide-out Floors
- Dual Attic Vents
- 12v Heat Pads on Holding Tanks
- Heated Pass Thru Storage Area
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
